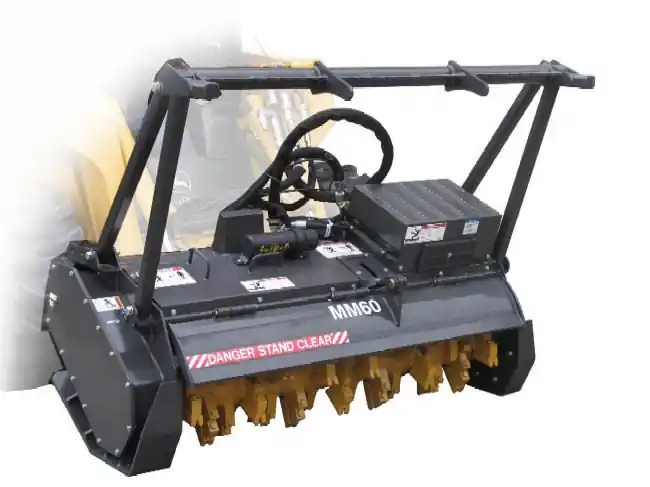

60″ or 72″ Width Heavy Duty Skid Steer Forestry Drum Mulcher.



Specially designed for high-flow skid steers, this unit is configured with a cutting width of 5′ and 6′. The light, strong and low profile makes this mulcher head the best skid steer mulcher head on the market.



Standard features include front mounted hydraulic deflector door, adjustable push bar and hydraulic pressure gauge. An optional hydraulic oil cooler is available for machines with inadequate cooling systems.

Our Skid Steer Drum Mulchers have a variable displacement Rexroth brand motor. You can dial it in to about any high flow skid steer or track loader.

This is a high flow only attachment because of the horsepower required to grind logs and stumps. High flow is currently defined as flows over 31 GPM at 3000 psi or greater.

This attachment has to be configured to your exact specifications for the best performance so we do not have them sitting on a shelf. These are built to order.

Our Skid Steer Drum Mulcher is configured to be used with most major brands of high flow skid steer machines right out of the crate.

The Configuration are as follows:



– Oil Cooler Factory Installed (If you would like this Oil Cooler you may add it to your order prior to check out)

– Pressure Gauge Factory Installed

– Electrical Control harness or box – Standard

– Hoses and couplers – Standard








  • Fits all Skid Steers e/w Universal Quick Tach Adapters.

  • Designed for High Flow Skid Steer Loaders only 30 GPM – 45 GPM.

  • Operates on 3 hose (Bobcat) or 5 hose systems (ASV).

  • Hydraulic Deflector Door for control of discharge particle size and discharge.

  • Hydraulic driven, self aligning belt drive designed at 200 % of rated horsepower, low maintenance and great durability.

  • Fixed hammers with double sided cutting teeth which are reversible. Each holder has 2 teeth on each side which can be field swapped over.

  • 45 Teeth Total

  • Balanced .75″ wall drum and 2.438″ alloy steel dive shaft.

  • Shreds up to 8″ hardwood material.

  • Engineered for skid steers up to 165 HP.

  • Operational speed is 2000 RPM.

  • Adjustable Skid Plates.

  • Adjustable Push Bar.

  • Roller Bearings are mechanically protected.

  • Overall Width 72″

  • Cutting Width – 60″and 72″

  • Weight 2250 lbs.to 2590 lbs.
Model  SE60S SE72S
 Width (overall)  72.98″ 84″
 Height (overall)  60.23″ 72″
 Length (overall)  43.74″ n/a
 Cutting Width  60″ 72″
 Height without push over bar  31.38″ n/a
 Length without push over bar  34.94″ n/a
 Operating Pressure (psi)  4000 4000
 Hydraulic Flow (gpm)  30 to 60 30 to 60
 Hammers  45 54
 Weight (lbs)  2,057 2,590

*Wear Items, Hoses, and Couplers are not covered under warranty
