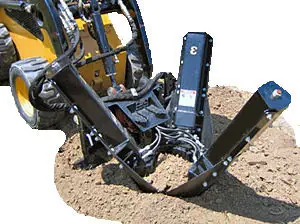

Mini Skid Steer Tree Spade Attachment and Transplanter For 30" diameter Tree Ball Grab Now

The 16″- 20″ Tree Transplanter Attachment from Spartan Equipment turns your Mini Skid Steer Loader into a high speed, labor saving, transplanting unit. A tree can be rooted up or transplanted without the operator having to leave the loader. The spade is designed with a very short frame reducing the need for stabilizers and counterweights.

Fingertip controls are integrated into the loader handles for ease of use. This item comes complete with a Universal Electrical Control Kit. The blades of the tree spade overlap to ensure a clean removal and provide extra support for the root ball. Cuts up to a 20″ diameter root ball, 16″ deep with fully truncated and removable 3/8″ thick steel blades that are set at 25°. The wide opening of the spade easily accommodates 1″ diameter evergreens and 1.5″ hardwood.

*Wear Items, Hoses, and Couplers are not covered under warranty

Select Product Options Above

• Select Mini Skid Steer Mount
• Additional Mounting options available (additional cost may incur), please give us a call at 1-888-888-1085 for availability

Features

• 30 degree con style model
• Ideal for transplanting and burlapping small trees and shrubs
• Optimal for sandy or hard-packed soil
• Low profile blade towers
• Able to fit and dig between closely planted trees
• Adjustable legs to set digging depth
• High tensile, abrasion resistant blades
• Electric over hydraulic control with hand held joystick
• Optional cord extension available

Specifications

• Overall Height – Blades Up (Open): 42.25″
• Overall Height – Blades Down (Closed): 44.51″
• Frame Height: 14.75″
• Digging Depth: 16.13″
• Cutting Angle: 30 Degrees
• Maximum Gate Opening: 26″
• Overall Length (Gate Open): 49″
• Maximum Leg Adjustment: 6″
• Gate Swing: 45 Degrees
• Number of Blades: 3
• Ball Diameter Available: 16″-20″
• Ball Weight: 80-120 lbs.
• Flow Requirements: Minimum 6 GPM
• Minimum Operating Pressure: 2,000 PSI
• Weight: 525 lbs.
